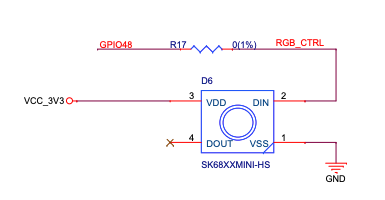

회로 확인
•
GPIO48 → DIN
•
LED를 제어하려면 FastLED 또는 NeoPixel 라이브러리를 사용해야 함.
문제 확인
•
코드에서는 틀린것이 없어서 확인해보니 보드에 실크로 io38이라고 적여있음(사용하는 보드 확인 필요)
#include <Adafruit_NeoPixel.h>
JavaScript
복사
•
네오픽셀 라이브러리 필요
platformio.ini파일에 라이브러리 추가
adafruit/Adafruit NeoPixel @ ^1.10.7
JavaScript
복사
전체코드
#include <Arduino.h>
#include <Adafruit_NeoPixel.h>
// #define PIN 48 // GPIO48에 연결된 LED
#define PIN 38 // GPIO48에 연결된 LED
#define NUMPIXELS 1 // LED 개수
Adafruit_NeoPixel pixels(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ400);
void turn_on_red()
{
Serial.println("빨간색 시도");
pixels.clear();
pixels.setPixelColor(0, pixels.Color(255, 0, 0));
pixels.show();
}
void turn_on_green()
{
Serial.println("초록색 시도");
pixels.clear();
pixels.setPixelColor(0, pixels.Color(0, 255, 0));
pixels.show();
}
void turn_on_blue()
{
Serial.println("파란색 시도");
pixels.clear();
pixels.setPixelColor(0, pixels.Color(0, 0, 255));
pixels.show();
}
void turn_on_white()
{
Serial.println("흰색 시도");
pixels.clear();
pixels.setPixelColor(0, pixels.Color(255, 255, 255));
pixels.show();
}
void turn_off()
{
Serial.println("LED 끄기");
pixels.clear();
pixels.setPixelColor(0, pixels.Color(0, 0, 0));
pixels.show();
}
void setup() {
Serial.begin(115200);
delay(1000);
Serial.println("NeoPixel 테스트 시작");
// 높은 밝기로 설정
pixels.begin();
pixels.setBrightness(10); // 최대 밝기
}
void loop() {
turn_on_red();
delay(1000);
turn_on_green();
delay(1000);
turn_on_blue();
delay(1000);
turn_on_white();
delay(1000);
turn_off();
delay(1000);
}
